Eliminate Aluminum Shavings by 99%

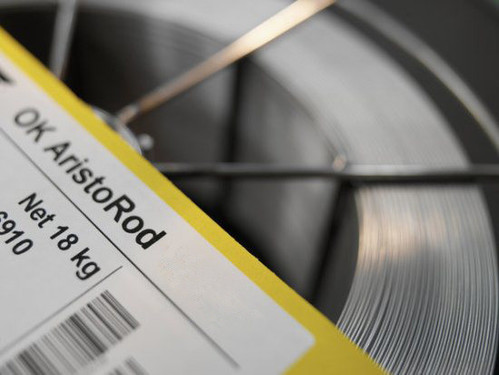

Go from shavings to savings with ESAB’s unique aluminum NT wire. With it, you can virtually eliminate aluminum shavings – by 99% – resulting in fewer clogged liners, less maintenance time and cost to clear clogged liners, and lower equipment cost by using fewer torch tips and liners.
Specifications
| Specifications | |
|---|---|
| Classifications | SFA/AWS A5.10 : ER5356 EN ISO 18273 : S Al 5356 (AlMg5Cr(A)) |
| Approvals | ABS : ER 5356 ABS : WB BV : WB CE : EN 13479 CWB : ER5356 DB : 61.039.01 DNV : 5356 LR : WB/I-3 S RINA : WB RINA : WC (*) UKCA : EN 13479 VdTÜV : 04664 |
Approvals are based on factory location. Please contact ESAB for more information.
| Alloy Type | AlMg 5 |
| Shielding Gas | I1, I3 (EN ISO 14175) |
| Typical Wire Composition % | |||||||
|---|---|---|---|---|---|---|---|
| Mn | Si | Cr | Al | Cu | Zn | Fe | Mg |
| 0.13 | 0.05 | 0.12 | 94.560 | 0.01 | 0.01 | 0.13 | 4.9 |
| Recommended Welding Parameters | |||
|---|---|---|---|
| Wire Diameter | Current | Voltage | |
| 0.8 mm ( 0.030 in. ) | 60-170 A | 13-24 V | |
| 1.0 mm ( 0.040 in. ) | 90-290 A | 15-26 V | |
| 1.2 mm ( 0.047 in. ) | 140-300 A | 20-29 V | |
| 1.6 mm ( 1/16 in. ) | 190-350 A | 25-30 V | |
| 2.4 mm ( 3/32 in. ) | 280-400 A | 26-31 V | |
